Jendamark India is shaking hands with the future of Industry 4.0 as a core distributor of DOBOT in India. DOBOT is the world’s leading collaborative robot, or cobot, with more than 55 000 applications running worldwide.

About DOBOT

DOBOT is a pioneering provider of intelligent robotic arms. Our automation solution seamlessly integrates AI-powered lightweight robotic arms and a proprietary software suite, helping industrial clients overcome common barriers to scaling up production, such as a lack of skilled workers, rising labour costs and other bottlenecks.

By replacing traditional manufacturing processes with advanced human-machine collaboration models, DOBOT meets the demands of flexible production, plays a critical role in elevating the manufacturing industry and will set the standard for tomorrow’s smart production process.

DOBOT is also proud to be spearheading a growing awareness of robotic arms in education and research.

Explore The Dobot Product Range



CR Series

Safe and reliable collaborative robot

MG 400

Space-saving lightweight desktop collaborative robot

Magician Lite

Introducing coding in K12 education

M1 Pro

Precision performance
SCARA collaborative robot

Contact Jendamark to see how we can help you.

Dobot CR Series

[back to top]

The DOBOT CR Series is the gold standard in safe and reliable collaborative robots. Empowered by a wide range of payloads from 3kg to 16kg, there is a model for most industrial applications. The robots operate in a 6-axis mode, enabling a high degree of flexibility.

    Explore the various models in the series by expanding the boxes below:

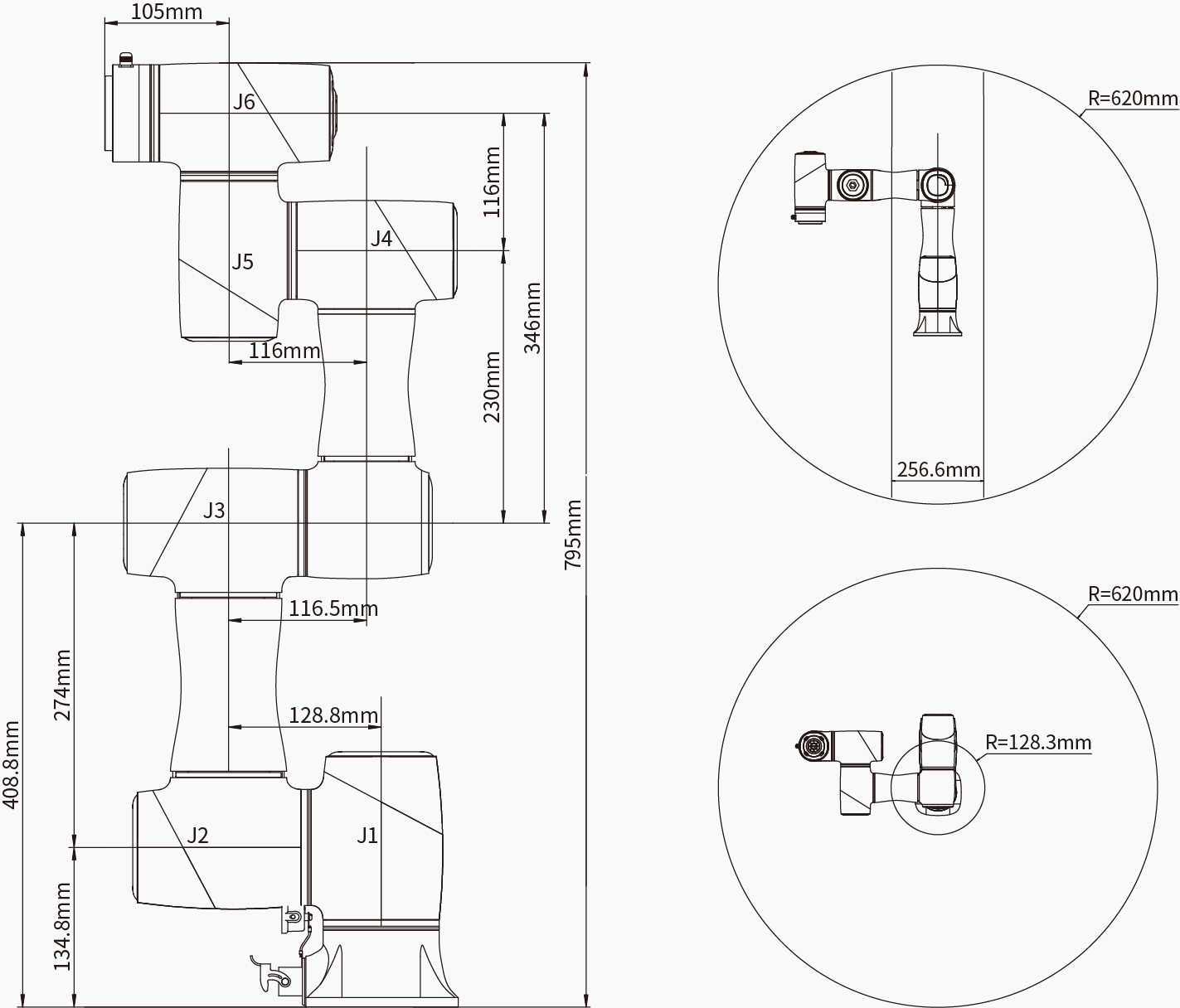

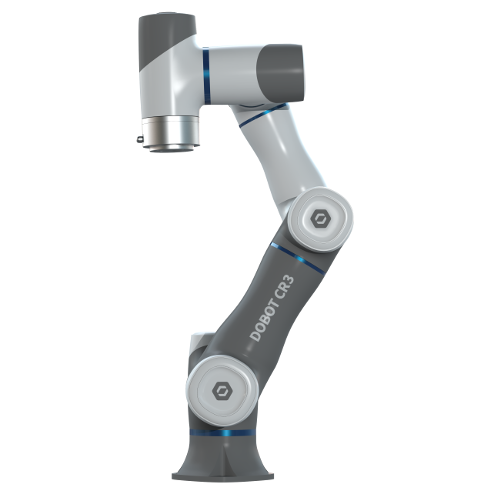

    DOBOT CR3

    ABOUT DOBOT CR3

    The DOBOT CR3 collaborative robot is a flexible solution for various industrial pain points, offering improved reliability, safety and decreased labour costs.

    Product Name DOBOT CR3
    Weight 16.5kg
    Maximum Payload 3kg
    Reach 620mm
    Rated Voltage DC48V
    Maximum Speed of TCP 2m/s
    Joint Ranges J1 ±360°
    J2 ±360°
    J3 ±155°
    J4 ±360°
    J5 ±360°
    J6 ±360°
    Maximum Speed of Joints J1/J2 180° /s
    J3/J4/J5/J6 180° /s
    End-Effector I/O Interface DI/DO/AI 2
    AO 0
    Communication Interface Communication RS485
    Controller I/O DI 16
    DO/DI 16
    AI/AO 2
    ABZ Incremental Encoder 1
    Repeatability ±0.02mm
    Communication TCP/IP, Modbus TCP, WIFI
    IP Rating IP54
    Temperature 0℃~ 45℃
    Power 120W
    Materials Aluminum alloy, ABS plastic

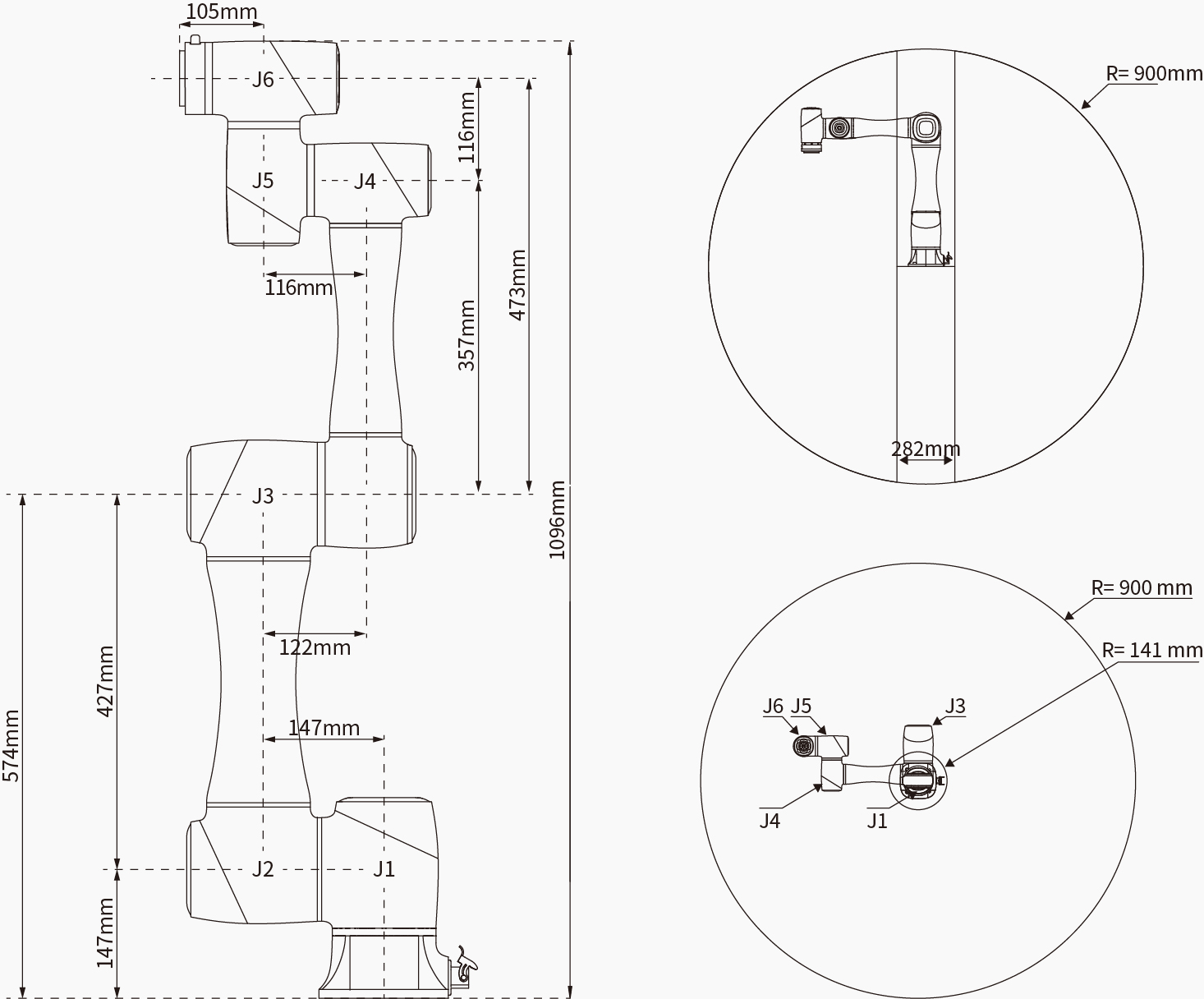

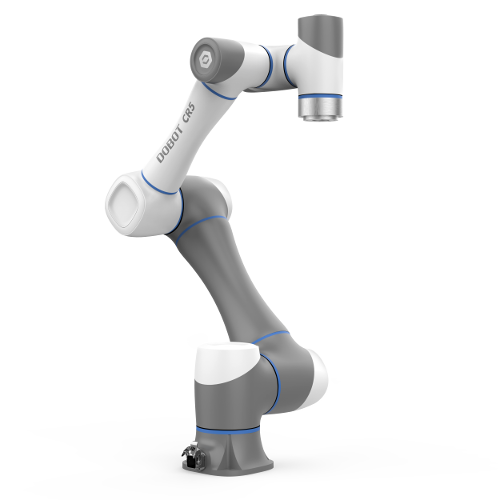

    DOBOT CR5

    ABOUT DOBOT CR5

    The DOBOT CR5 robotic arm is an easy-to-use automation solution designed for industrial and educational purposes. It can be adapted for a variety of applications and is quick to perform in any environment.

    Product Name DOBOT CR5
    Weight 25kg
    Maximum Payload 5kg
    Reach 900mm
    Rated Voltage DC48V
    Maximum Speed of TCP 3m/s
    Joint Ranges J1 ±360°
    J2 ±360°
    J3 ±160°
    J4 ±360°
    J5 ±360°
    J6 ±360°
    Maximum Speed of Joints J1/J2 180° /s
    J3/J4/J5/J6 180° /s
    End-Effector I/O Interface DI/DO/AI 2
    AO 0
    Communication Interface Communication RS485
    Controller I/O DI 16
    DO/DI 16
    AI/AO 2
    ABZ Incremental Encoder 1
    Repeatability ±0.02mm
    Communication TCP/IP, Modbus TCP, WIFI
    IP Rating IP54
    Temperature 0℃~ 45℃
    Power 150W
    Materials Aluminum alloy, ABS plastic

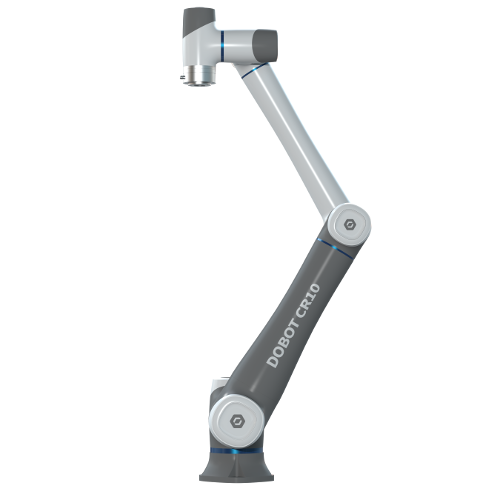

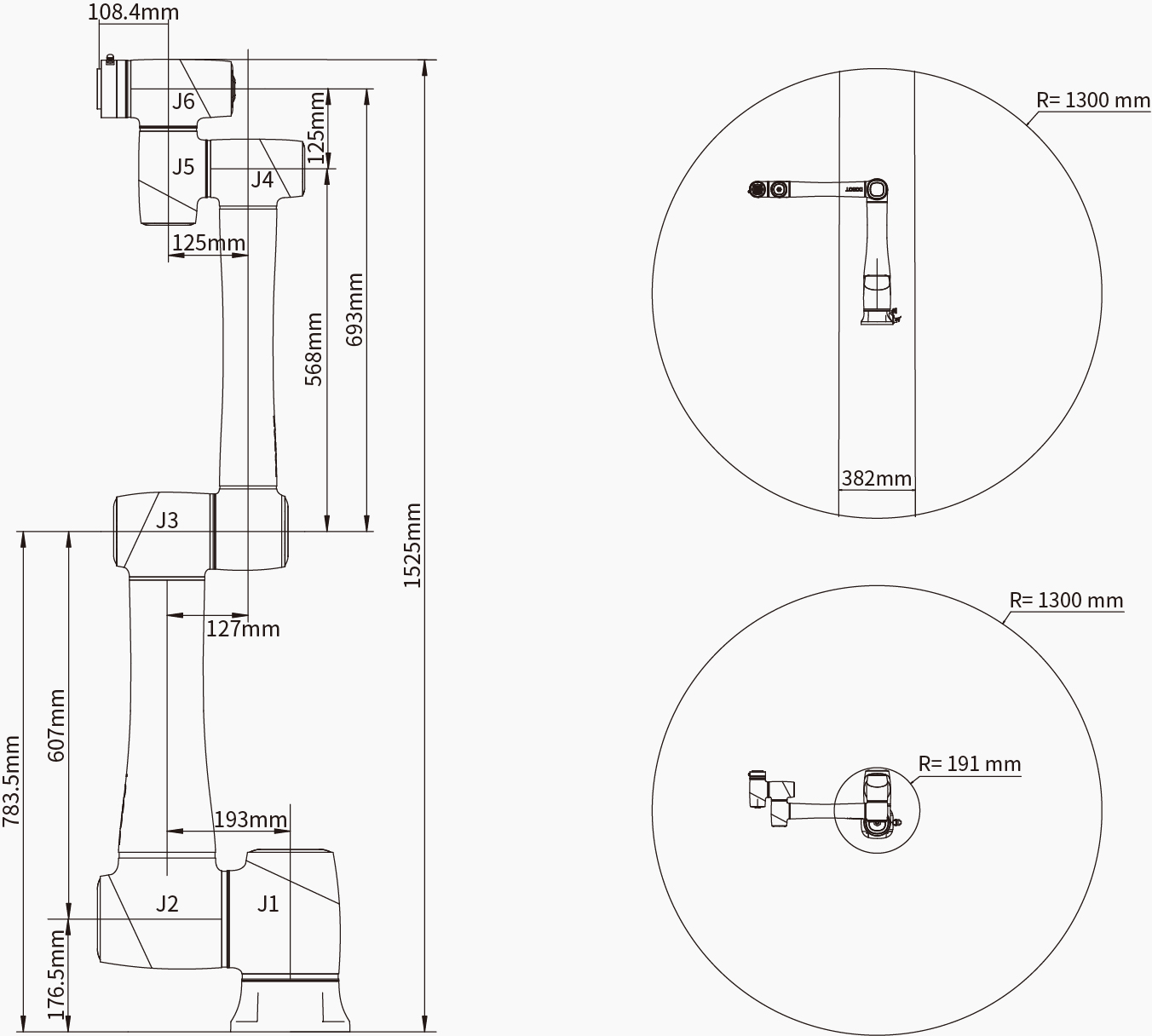

    DOBOT CR10

    ABOUT DOBOT CR10

    The DOBOT CR10 is a versatile, easy-to-use cobot that was created to improve the efficiency of manufacturing lines. It offers a wide range of features suited to process applications such as palletising, loading and unloading, and more.

    Product Name DOBOT CR10
    Weight 40kg
    Maximum Payload 10kg
    Reach 1300mm
    Rated Voltage DC48V
    Maximum Speed of TCP 4m/s
    Joint Ranges J1 ±360°
    J2 ±360°
    J3 ±160°
    J4 ±360°
    J5 ±360°
    J6 ±360°
    Maximum Speed of Joints J1/J2 120° /s
    J3/J4/J5/J6 180° /s
    End-Effector I/O Interface DI/DO/AI 2
    AO 0
    Communication Interface Communication RS485
    Controller I/O DI 16
    DO/DI 16
    AI/AO 2
    ABZ Incremental Encoder 1
    Repeatability ±0.03mm
    Communication TCP/IP, Modbus TCP, WIFI
    IP Rating IP54
    Temperature 0℃~ 45℃
    Power 350W
    Materials Aluminum alloy, ABS plastic

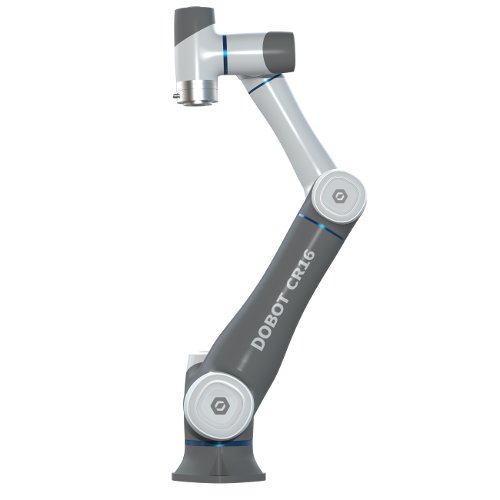

    DOBOT CR16

    ABOUT DOBOT CR16

    The DOBOT CR16 ensures enhanced overall product quality. Equipped with interactive programming, the DOBOT CR16 is convenient and easy to master.

    Product Name DOBOT CR16
    Weight 40kg
    Maximum Payload 16kg
    Reach 1000mm
    Rated Voltage DC48V
    Maximum Speed of TCP 3m/s
    Joint Ranges J1 ±360°
    J2 ±360°
    J3 ±160°
    J4 ±360°
    J5 ±360°
    J6 ±360°
    Maximum Speed of Joints J1/J2 120° /s
    J3/J4/J5/J6 180° /s
    End-Effector I/O Interface DI/DO/AI 2
    AO 0
    Communication Interface Communication RS485
    Controller I/O DI 16
    DO/DI 16
    AI/AO 2
    ABZ Incremental Encoder 1
    Repeatability ±0.03mm
    Communication TCP/IP, Modbus TCP, WIFI
    IP Rating IP54
    Temperature 0℃~ 45℃
    Power 350W
    Materials Aluminum alloy, ABS plastic

    Contact Jendamark to see how we can help you.

    ABOUT DOBOT MG400

    [back to top]

    The DOBOT MG400 is a lightweight, space-saving desktop robotic arm suitable for diversified manufacturing needs. It is flexible to deploy and easy to use, perfect for small-space applications. Designed for rich, light-load applications, the DOBOT MG400 is a good fit for automated workbench scenarios in tight workspaces that require fast deployment and changeover.

    Product Name DOBOT MG400
    Model DT-MG-P4R07-01l
    Degree of Freedom 4
    Payload 500g (Max 750g)
    Reach 440mm
    Repeatability ±0.05mm
    Joint Ranges J1 ±160°
    J2 -25°~85°
    J3 -25°~105°
    J4 -180°~180°
    Joint Maximum Speed J1 300° /s
    J2 300° /s
    J3 300° /s
    J4 300° /s
    Power 100~240V AC, 50/60 Hz
    Nominal Voltage 48V
    Nominal Power 150W
    Communication Interface TCP/IP, Modbus TCP
    Installation Way Counter
    Weight 8kg
    Base Size 190mm x 190mm
    Working Environment 0 ℃ ~40 ℃
    Software DobotStudio 2020, SCStudio

    Contact Jendamark to see how we can help you.

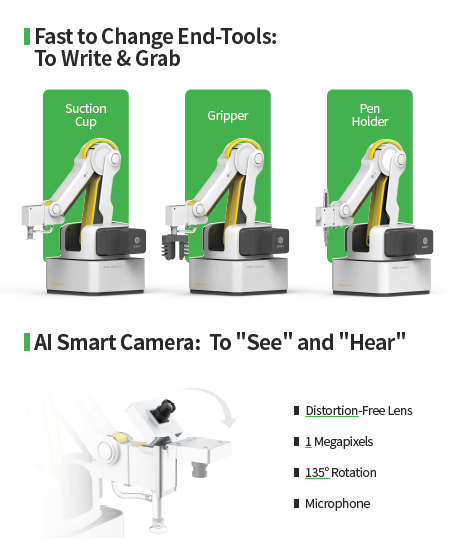

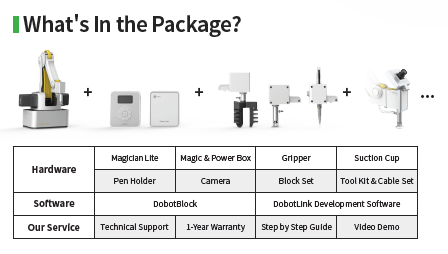

    ABOUT DOBOT MAGICIAN LITE

    [back to top]

    The DOBOT Magician Lite – a multi-functional, lightweight, intelligent robotic arm – is one of the core products in DOBOT’s K12 customised artificial intelligence education ecosystem for students and teachers. The world’s first child-friendly and AI-infused robot arm employs numerous software and hardware interaction methods and expansion interfaces to maximise students’ freedom to create.

    Contact Jendamark to see how we can help you.

    ABOUT DOBOT M1 PRO

    [back to top]

    The DOBOT M1 Pro is the second-generation intelligent collision-detection SCARA robot with a built-in dynamic algorithm and operational software. It is ideal for industrial uses requiring high-speed operations. A simple design, collision detection, and hand-guided learning make the DOBOT M1 Pro intelligent and ease to manage.

    Model Number M1 Pro
    Weight(kg) 15.7
    Effective Payload(kg) 1.5
    Reach(mm) 400
    Repeatability(mm) ±0.02
    Power Supply 100~240VAC, 50/60Hz
    Communication TCP/IP, Modbus TCP, Modbus RTU
    Joint Range J1 ±85°
    J2 ±130°
    J3 5mm ~ 245mm
    J4 ±360°
    Joint Maximum Speed J1 180° /s
    J2 180° /s
    J3 1000mm/s
    J4 1000° /s
